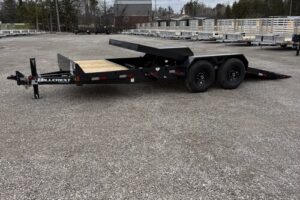

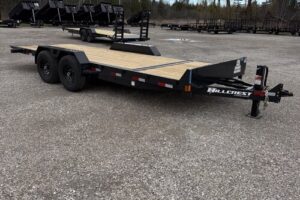

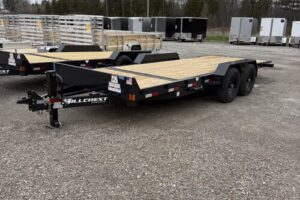

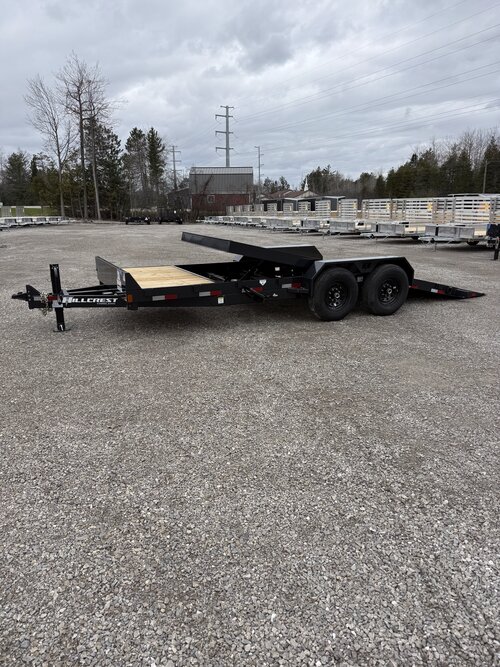

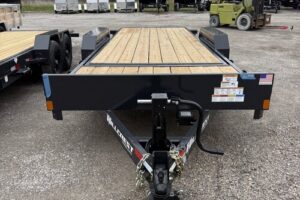

The 2026 Hillcrest 7×16’ + 4’ 14K Partial Tilt Trailer is designed for heavy-duty equipment transport and efficient loading performance.
With a 14,000 lb GVWR, 3,680 lb trailer weight, and approximately 10,320 lb payload capacity, this partial tilt trailer is built to handle compact equipment, skid steers, and machinery with confidence.
Constructed with a durable 6” channel frame and reinforced 3” channel crossmembers, this trailer delivers long-term strength and structural reliability. Tandem 7,000 lb premium cambered axles paired with forward self-adjusting electric brakes on both axles provide stable towing and dependable braking performance.
The 16’ hydraulic dampening tilt deck combined with a 4’ stationary front deck eliminates the need for traditional ramps while allowing controlled and smooth equipment loading. The tilt system includes valve control for safe and consistent operation.
Additional heavy-duty components include a 6” channel wrap tongue, 2-5/16” adjustable coupler, 12,000 lb top wind drop-leg jack (set-back design), and 3/8” Grade 70 safety chains with latch hooks for secure transport.
Finished with Sherwin Williams Super Durable powder coat, recessed grommet-mounted LED lighting, sealed modular wiring harness with 7-way RV plug, removable double broke fenders, and (4) 5/8” D-rings for secure tie-down points, this trailer is engineered for professional-grade hauling.
Key Specifications & Features
• Model: 14164SPT
• VIN: 7X8BT2022TS003074
• Dimensions: 7’ x 16’ Tilt + 4’ Stationary Deck
• GVWR: 14,000 lbs
• Trailer Weight: 3,680 lbs
• Payload Capacity: Approx. 10,320 lbs
• Axles: Tandem 7,000 lb Premium Cambered Axles
• Brakes: Forward Self-Adjusting Electric Brakes (Both Axles)
• Suspension: Multi-Leaf Slipper Spring with Equalizer
• Frame: 6” Channel Frame
• Crossmembers: 3” Channel Crossmembers

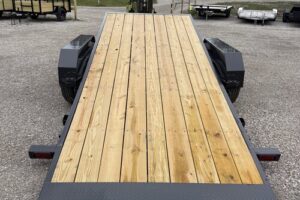

• Decking: 2” Treated Pine Floor
• Deck Width: 82”
• Tilt System: Hydraulic Dampening Tilt with Valve Control
• Stationary Deck: 4’ Front Deck
• Coupler: 2-5/16” Adjustable Coupler
• Tongue: 6” Channel Wrap Tongue
• Jack: 12,000 lb Top Wind Drop-Leg Jack (Set-Back)
• Safety Chains: 3/8” Grade 70 with Safety Latch Hooks
• Tie Downs: (4) 5/8” D-Rings
• Fenders: Removable Double Broke Fenders
• Tires: ST235/80R16 Load Range E | 8-Bolt Pattern
• Wiring: Sealed Modular Wiring Harness | 7-Way RV Plug
• Lighting: Recessed Grommet-Mounted LED Lights
• Finish: Sherwin Williams Super Durable Powder Coat
The 2026 Hillcrest 7×16’ + 4’ 14K partial tilt trailer combines hydraulic loading convenience with heavy-duty construction—making it an excellent choice for contractors and equipment operators.
