Quality Steel & Aluminum – Deluxe Utility Trailers
Details
• 2”x2” Top tube rails and uprights
• 4”x2” Triple tube tongue
• 2 5/16 straight coupler
• 2,000lb Jack
• (2) 3,500lb Dexter axles
• (1) brake axle
• (1) idler axle -breakaway kit
• 205/75R15 tires on 5 bolt wheels
• Spare tire mound -BI-Fold gate
• Diamond tread plate fenders
• 5 welded tie down points
• 2”x8” treated wood deck -LED lights, all wiring in protective loom
• Aluminum Diamond plate front stone guard
• 3 year warranty
Available Sizes:
Length 14ft.
Length 16ft.
Length 18ft.
Low Side Utility Trailers
Details
• 2″ A-Frame Coupler
• ¼” Safety Chain
• Set Back 2K A-Frame Jack
• 205/75Rx15 LRC Tire w/5H Wheel
• Angle Iron Frame
• Tube Top Rail
• 3″x2″xl lg Tube Tongue
• Gate 2″xl “xl 1 g Tube w/3/4” #9 Expanded
• Safety Lube Hub on Axle
• Rubber Mounted LED Lights
• Wire connections are Soldered and in Loom
• 2″x6″Treated Deck
• Sandblasted & Painted w/2 part system
• 13″ Sides
Models and Size:
| Model | Dimensions |
|---|---|
| BNM58LS3 | 5’x8′ |
| BNM510LS3 | 5’xl0′ |
| BNM610LS | 6’xl0′ |
| BNM612LS | 6’x12′ |
| BNM614LS | 6’x14′ |
| BNM821OLS | 82″x10′ |
| BNM8212LS3 | 82″xl2′ |
| BNM8214LS3 | 82″xl4′ |
Additional Options
| Spare Tire Carrier | Torsion Axle |
| 15″ Spare Tire | Brakes |
| Extra Board | Poly Box |
| Drop Axle | Beaver Tail |
| Recessed D-Rings | Gate Asst. |
| 5200# Upgrade | Drop in Gate |

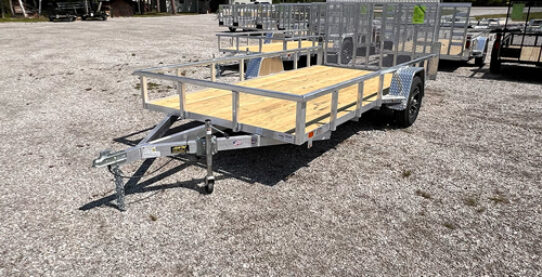

Aluminum Low Side Utility Trailers
Details
• 3″ x 2″ x l/4″ Angle Frame & Cross Members
• 2″ x 2″ x 3/16″ Tube Uprights & Top Rail
• 2″ x 2″ x 3/16″ Tube Fold-In Gate
• 4″ x 2″ x 3/16″ Tube Tongue & Light Tubes
• 2″ Straight Coupler & 1200 lb. Marine Jack
• 1/4″ Safety Chain
• Tread Plate Fenders with Gussets
• 3500 lb. Torsion Safety Lube Axle
• 205/75Rxl5″ LRC Tires on 5-Bolt Wheels
• 2″ x 6″ Treated Floor Boards
• DOT Approved Rubber Mounted Lights
• Wiring in Loom ·with Soldered Connections
Models and Size:
| Model | Dimensions |
|---|---|
| BNM58LSA3 | 5’x8′ |
| BNM510LSA3 | 5’xl0′ |
| BNM610LSA | 36’xl0′ |
| BNM612LSA | 36’x12′ |
| BNM614LSA | 36’x14′ |
| BNM821OLSA | 382″x10′ |
| BNM8212LSA 3 | 82″xl2′ |
| BNM8214LSA3 | 82″xl4′ |
Additional Options
• Spare Tire Carrier
• Recessed D-Rings
• Aluminum Wheels
• Bifold Gate
Aluminum High Side Utility Trailers
Details
• 3″ x 2″ x 1/4″ Angle Frame & Cross Members
• 2″ x 2″ x 3/16″ Tube Uprights & Top Rail
• 2″ x 2″ x 3/16″ Tube Fold-In Gate
• 4″ x 2″ x 3/16″ Tube Tongue & Light Tubes
• 2″ Straight Coupler & 1200 lb. Marine Jack
• 1/4″ Safety Chains
• Tread Plate Fenders with Gussets
• 3500 lb. Torsion Safety Lube Axle
• 205/75Rx15″ LRC Tires on 5-Bolt Wheels
• 2″ x 6″ Treated Floor Boards & 5/4″ Side Boards
• DOT Approved Rubber Mounted LED Lights
• Wiring in Loom with Soldered Connections
Models and Size:
| Model | Dimensions |
|---|---|
| BNM58HSA3 | 5’x8′ |
| BNM510HSA3 | 5’xl0′ |
| BNM610HSA3 | 6’xl0′ |
| BNM612HSA3 | 6’x12′ |
| BNM614HSA3 | 6’x14′ |
| BNM821OHSA3 | 82″x10′ |
| BNM8212HSA3 | 82″xl2′ |
| BNM8214HSA3 | 82″xl4′ |
Additional Options
Spare Tire Carrier
Recessed D-Rings
Aluminum Wheels
Bifold Gate

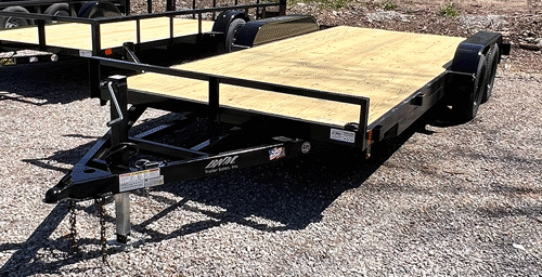

Car Haulers
7K Car Haulers
Details
• 2′ Dove Tail
• 7,000lb. GVWR
• 15″ Radial Tires (5 Lug)
• Two 3,500lb. EZ Lube Dexter Axles with Brakes
• 2 5/16 inch Weld-on Coupler
• Self Storing Ramps (not available on 14′ Single Car Hauler)
• Stake Pockets
• Treated Wood Deck
• Sealed Beam Lights
• Reflection Tape
• Breakaway Kit
• Safety Chains
Available Sizes:
Length 14ft.
Length 16ft.
Length 18ft.
Length 20ft.
Additional Options
| Spare Tire | Spare Tire Mount |
| Rub Rail | Winch Plate |
| Stop Bar | LED Lights |
| Removable Fenders | Diamond Plate Fenders |
| D-Rings | Tool Box (Pre-fab) |
| Stand-up Ramps | Extra Slide-in Ramp |
| Heavy Duty Channel Fenders |
10K Car Haulers
Details
• 2′ Dove Tail
• 7,000lb. GVWR
• 15″ Radial Tires (5 Lug)
• Two 3,500lb. EZ Lube Dexter Axles with Brakes
• 2 5/16 inch Weld-on Coupler
• Self Storing Ramps (not available on 14′ Single Car Hauler)
• Stake Pockets
• Treated Wood Deck
• Sealed Beam Lights
• Reflection Tape
• Breakaway Kit
• Safety Chains
Available Sizes:
Length 16ft.
Length 18ft.
Length 20ft.
Length 22ft.
Additional Options
| Spare Tire | Spare Tire Mount |
| Rub Rail | Winch Plate |
| Stop Bar | LED Lights |
| Removable Fenders | Diamond Plate Fenders |
| D-Rings | Tool Box (Pre-fab) |
| Stand-up Ramps | Extra Slide-in Ramp |
| Heavy Duty Channel Fenders |

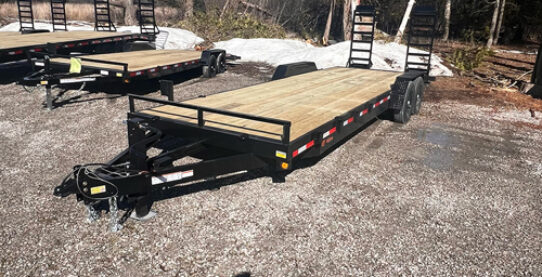

Equipment Haulers
Details
• 2′ Dove Tail
10,000lb. GVWR
15″ Radial Tires (6 Lug)
3″ Channel Cross Members on 24″ center
Two 5,200lb. EZ Lube Dexter Axles with Brakes
2 5/16 inch Bolt-on Coupler
Stand-up Ramps
Diamond Plate Fenders
Stake Pockets
Rub Rail
Stop Bar
Tool Tray
Treated Wood Deck
LED Lights
Reflection Tape
Breakaway Kit
Safety Chains
Models and Size:
Length 16ft
Length 18ft
Length 20ft
Additional Options
Spare Tire
Spare Tire Mount
Premium Tires 14ply
Premium Spare Tire
Stand-up Gate
Extra Slide-in Ramp
Winch Plate
Tool Box (Pre-fab)
Heavy Duty Channel Fenders
